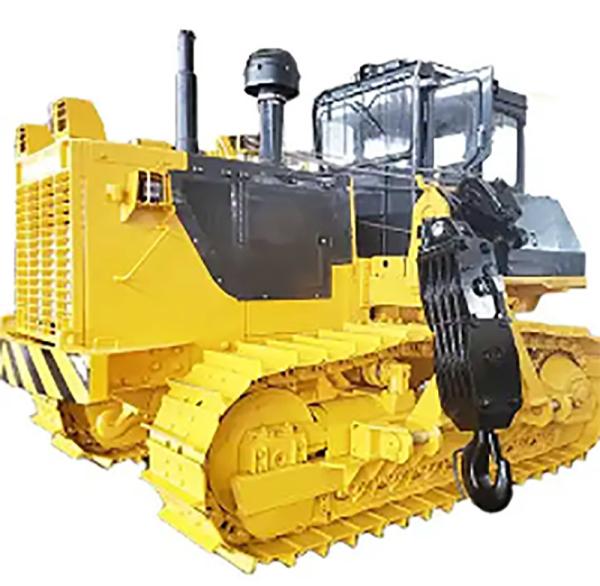

Heavy Duty Pipelayer Dozer Pipeline Construction Equipment ISO9001

  • 1
  • 2
  • 3

Brand Name : Suhigo

Model Number : HGY

Certification : ISO9001 OHSAS18001 CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Delivery Time : 70days

Packaging Details : Seaworthy- Integral wax spraying anti-corrosion

Product name : Pipe Layer

Applicable temperature : -45℃~+60℃

Transmission : Planetary gears, forced lubrication power shift

Size : Standard

Mobile type : Tracked construction machinery

Applicable Industries : Farms, Retail, Construction works , Energy & Mining

Color : Yellow and red

Contact Now

Heavy Pipe Layer Dozer HGY Pipeline Construction Equipment

Itroduction

  • The pipelayer is an important construction equipment in the construction of oil and natural gas pipelines. It is mainly used for the transportation of pipelines such as oil and gas, that is, pipeline transportation and piping operations, pipeline counterpart operations, and pipeline trenching operations. The pipelayer was developed and designed on the basis of the bulldozer in the 1930s. The vast majority of pipelayers produced in the world are based on bulldozer chassis.



Heavy Duty Pipelayer Dozer Pipeline Construction Equipment ISO9001



Technical Features of Suhigo Pipelayer:

  • The whole machine feature high strength, high stability, and beautiful appearance.
  • The hook rod winch and working hydraulic system adopt joint venture products or imported products.
  • The pilot control mode is adopted for the operations of hook rod winch and counterweight.
  • The four-link counterweight structure is adopted.
  • Optional air conditioned cab is available.
  • The corresponding measures are taken in consideration of diversified environment adaptabilities.
  • The working device and the counterweight feature good disassembling and assembling performance.



Technical parameters



Model HGY20 HGY70
Moving system Operation Operating lever

Operating lever


speed Forward (2) 3.29/5.28 km/h 3.6/6.6 km/h
Reverse (2) 4.28/7.59 km/h 4.4/7.8 km/h
Track grounding length 2635mm 3620mm
Track width 560mm 760mm
Number of rollers 7×2 9×2
Lifting system Variable form Wire rope luffing Wire rope luffing
Operation method Hydraulic control handle Hydraulic control handle



Boom

 Boom length 6000mm 7600/8600mm
Lifting height 4909mm 6100/7050mm
Boom angle 0~85° 0~86°
Hook speed (6-8 times rate) 0~12.0m/min 0~7.0 m/min
Amplitude time (4-5 times) 25s 32s



Heavy Duty Pipelayer Dozer Pipeline Construction Equipment ISO9001





About Suhigo

  1. As China Specialist in Pipeline Construction Equipment Manufacturing., Suhigo can offer premium pipelayers or sideboom to help achieve the target of lifting pipe, moving to position and placing pipe. Suhigo Pipelayer Family have full line lifting weight pipelayers equivalent to International Pipelayer brand, size ranging from 25tons to 90tons. With decades experience, all pipelayers are designed to full safety, reliable performance and easy operation, can work flexible with different size pipeline construction projects throughout the globle. Up to now, Suhigo have worked with Oil Construction companies of CNPC, Sinopec and CPP.
  2. Looking to acquire brand new pipelayers or sidebooms for your tender ? Check out the latest introduction of Pipelayers from Suhigo. Except for brand new pipelayers, we may have some used pipelayers in stock with good quality, welcome to contact us for more information.



Engine HGY25 HGY45 HGY70 HGY90
Model SDEC SC11CB Cummins NT855-C280 NT855-C360 Cummins NT855-C360
Rated Power 120kw / 160hp 169kw /225hp 257kw / 340hp 257kw / 340hp
Rated Speed 1850RPM 2000rpm 2000rpm 2000rpm



Lifting System HGY25 HGY45 HGY70 HGY90
Variable Mode Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing Wire Rope Luffing
Operation Mode Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick Hydraulic Control, Joystick
Boom-Length 6000mm 7500 / 8500mm 7600 / 8600mm 8600 / 9600mm
Boom-Lifting Height 4909mm 6100 / 7050mm 7600 / 8600mm 7050 / 9600mm
Boom Angle 0~85° 0~86° 0~86° 0~86°
Hook Speed (6~8times rate) 0~12.0m/min 0~6.2m/min 0~7.0m/min 0~7.0m/min
Luffting Time (4~5times) 25S 20s 32s 40s



Heavy Duty Pipelayer Dozer Pipeline Construction Equipment ISO9001

Heavy Duty Pipelayer Dozer Pipeline Construction Equipment ISO9001





Why choose suhigo?

1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.

2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.

3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.

4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.

5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
