BGD-120S Auger Boring Machine
Introduction
The Model BGD-120S is lately put in our product line of guided auger boring pipe jacking drill rig.It is specially designed to be used at narrow operating site,with length of 3.2m,laying 323m to 630m product pipes,each pipe section of 1m.All the hydraulic parts used in this rig are globally well known barnds.The output rotating speeds and torques of the drill rig are adjustable according to drilled earth formation by operator.Customers have options to choose driving power of the drill rig between CUMMINS emission standard engine power and electric motor power.
| Engine | |
| DCEC Cummins | QSB4.5-C160Ⅲ |
| Rated Output at 2200rpm(Kw) | 119 |
| Electric system(V) | 24 |
| Fuel tank capacity(L) | 380 |
| Hydraulic system(Mpa) | 24 |
| Auxiliary hydraulic system pressure(Mpa) | 20 |
| Hydr.oil tank capacity(L) | 850 |
| Max.torque at low speed(Nm) | 24000 |
| High rotating speed(r/min) | 0-50 |
| Low rotating speed(r/min) | 0-25 |
| One step stroke(mm) | 300 |
| Spindle clearance to ground(mm) | 673 |
| Rotary head drifting distance(mm) | 320 |
| Pushing speed(m/min) | 0-0.5 |
| 0-1.25 |
| Pushing force(t) | 120 |
| Duct tube diameter(optional)(mm) | Ø325-Ø711 |

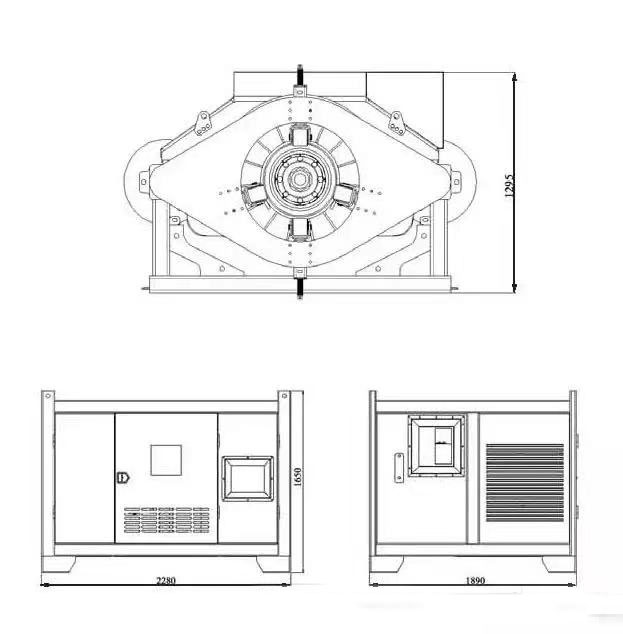

| Dimension of power pack(mm) | 2280*1890*1620 |
| Power pack weight(Kg) | 2400 |
Why choose suhigo?
1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.
2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.
3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.
4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.
5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
